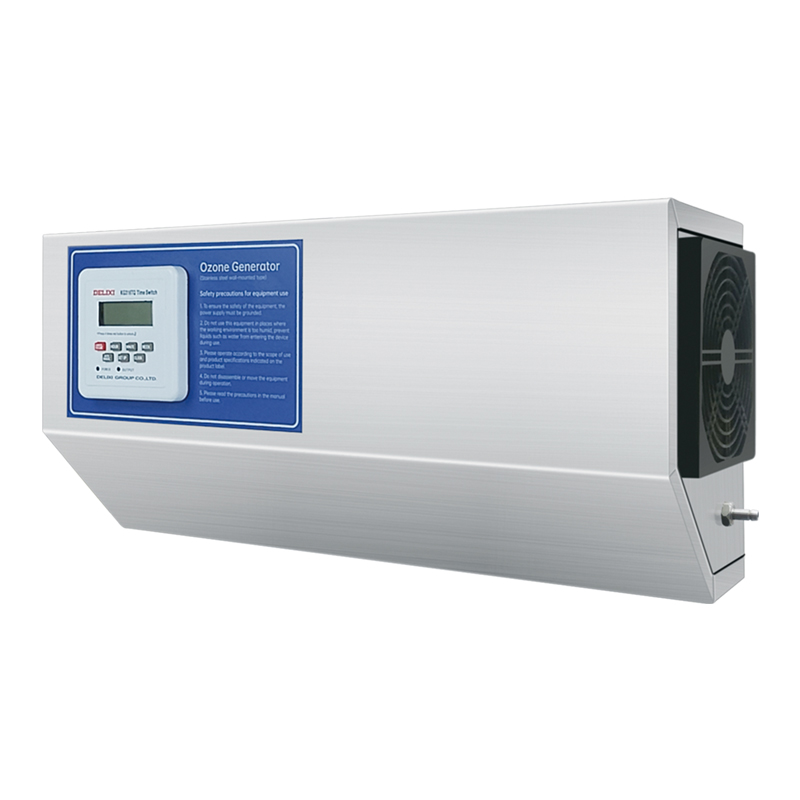

Air feeding ozone generator produces ozone gas by applying corona discharge technology with quartz glass ozone cell, which is extremely stable, long lifespan, high discharge efficiency. Comes with built-in air compressor, it is a less expensive and turnkey solution for applications like sterilization, deodorization, and water purification.
FEATURES
Wall-mounted design (A/C-style installation)
Programmable digital timer
SPECIFICATIONS
| MODEL | DNA-5G-W | DNA-7G-W | DNA-10G-W | DNA-20G-W | |
| MAX OZONEPRODUCTION | g/hour | 5 | 7 | 10 | 20 |
| lbs/day | 0.3 | 0.4 | 0.5 | 1.1 | |
| OZONE CONCENTRATION | mg/l | 15-25 | 15-25 | 15-25 | 15-25 |
| % | 1.0-1.7 | 1.0-1.7 | 1.0-1.7 | 1.0-1.7 | |
| MAX POWER | W | 100 | 150 | 160 | 270 |
| COOLING | Air Cooled | Air Cooled | Air Cooled | Air Cooled | |
| LENGTH x WIDTH x HEIGHT | cm | 45x16x22 | 45x16x22 | 55x26x28 | 55x26x28 |
| inches | 17.7x6.3x8.7 | 17.7x6.3x8.7 | 21.7x10.2x11 | 21.7x10.2x11 | |
| WEIGHT | kg | 4.7 | 6.4 | 9.1 | 11.5 |
| lbs | 10.4 | 14.1 | 20.1 | 25.4 | |
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
