Dino Purification Co.,Ltd
Ozone Generator Specialist

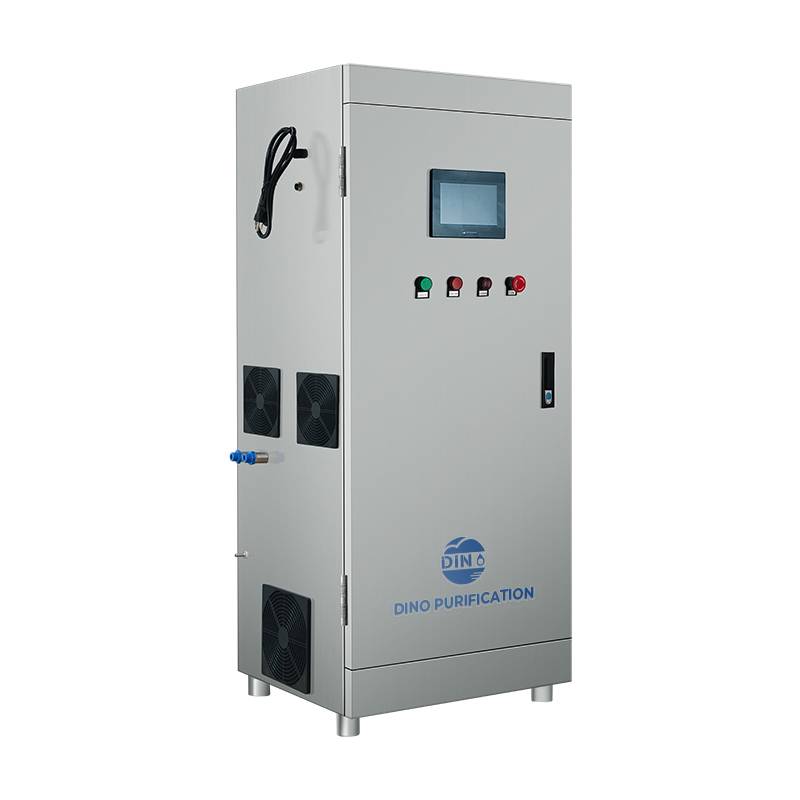

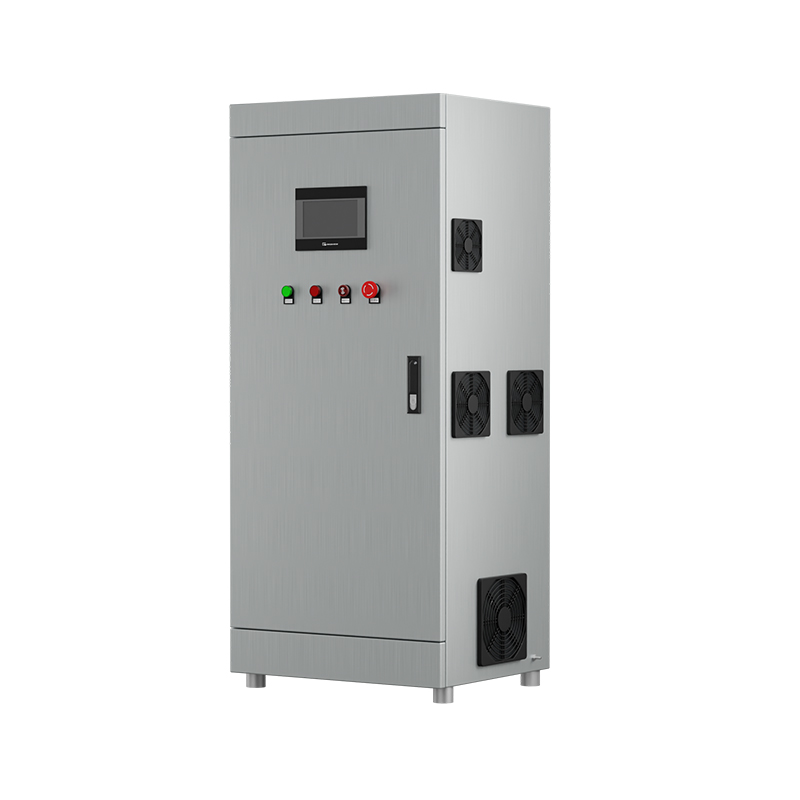

DNO-PThe series of ozone generators adopt the latest plate structure technology DINOpatent ,Can generate up to22wt%Ultra high concentration gaseous ozone with high weight.Water cooling design ensures extremely stable ozone generation.
feature
*By weight10-16weight%,22wt%Customizable photovoltaic industry
*ImportPLC/HMI,standard4~20mASignal access port
*monitor Oxygen production equipment;ozone generator;Ozone equipment output Percentage of maximum capacity ;Cooling water status,Hour run counter,System failure - Ozone generator malfunction.
application
Industries that require ultra-high ozone concentration,Like a sewage treatment plant STP Photovoltaic industry, etc,
Specifications
| MODEL | MAX OZONE PRODUCTION | OZONE CONCENTRATION | REQUIRED OXYGEN FLOW | MAX POWER | LENGTH X WIDTH X HEIGHT | WEIGHT | system | |||||
| g/hour | lbs/day | mg/L | wt% | l/min | m3/h | KW | cm | inches | kg | lbs | ||
| DNO-50G-P | 50 | 2.6 | 137-200 | 9.6-14 | 7 | 0.4 | 1.55 | 50x45x125 | 19.69x17.72x49.21 | 86 | 189.6 | Independent oxygen concentrator |
| DNO-100G-P | 100 | 5.3 | 176-220 | 12.3-15.4 | 10 | 0.6 | 2.8 | 60x50x140 | 23.6x19.7x55.2 | 123.8 | 272.93 | Independent oxygen concentrator |
DNO-150G-P | 150 | 7.9 | 159-198 | 11-13.8 | 16 | 0.96 | 2.95 | 70x60x143 | 27.56x23.62x56.3 | 145 | 319.67 | Independent oxygen concentrator |
| DNO-200G-P | 200 | 10.6 | 168-220 | 12-15.4 | 20 | 1.2 | 5.1 | 80x70x143 | 31.5x19.7x59.8 | 175.6 | 387.13 | Additional oxygen generator |
| DNO-300G-P | 300 | 15.9 | 135-228 | 9.4-16 | 40 | 2.4 | 2.6 | 70x60x140 | 27.6x23.6x55.2 | 107 | 235.89 | Additional oxygen generator |
| DNO-500G-P | 500 | 26.4 | 142-197 | 10-13.8 | 60 | 3.6 | 3.85 | 80x70x170 | 31.5x27.6x67 | 120 | 264.6 | Additional oxygen generator |
| DNO-1000G-P | 1000 | 52.9 | 150-200 | 10.5-14 | 120 | 7.2 | 10 | 80x70x170 | 31.5x27.56x66.93 | 240 | 529.11 | Additional oxygen generator |
|
