Dino Purification Co.,Ltd
Ozone Generator Specialist

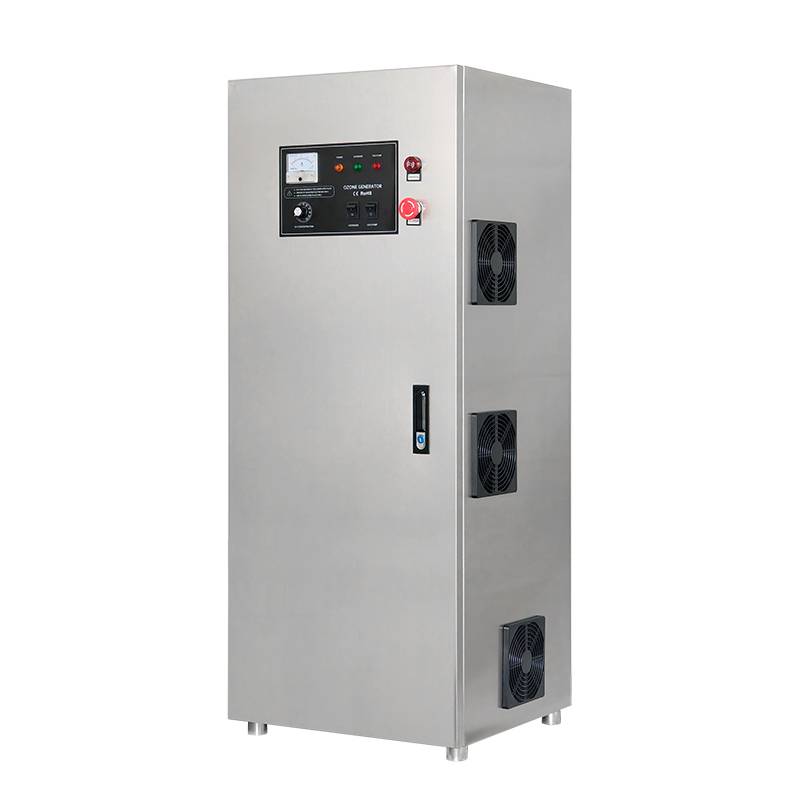

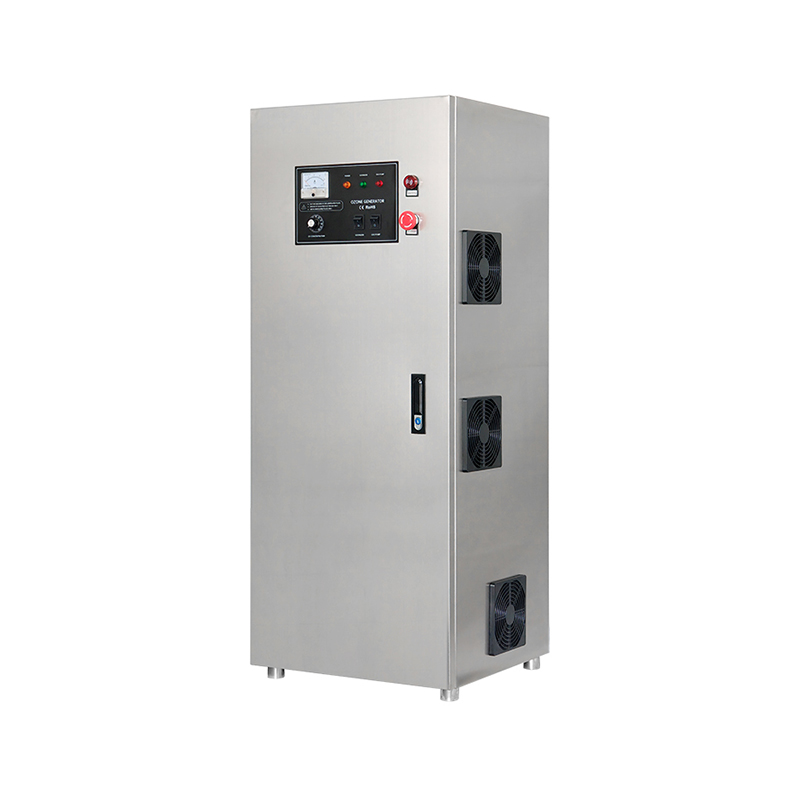

The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
**feature
- Fully air-cooled design,No need for cooling water source,Installation is more convenient.
- Plate type ozone reactor ensures continuous output of high concentration ozone,Longer service life,Minimum maintenance amount.
- Over tens of thousands of hours of continuous operation have proven its reliability and stability.
Product Parameters
| model | MAX OZON EPRODUCTION | OXYGEN CONSUMPTION | OZONE CONCENTRATION | MAX POWER | LENGTH x WIDTH x HEIGHT | WEIGHT | |||||
| g/hour | lbs/day | l/min | m3/h | mg/L | wt% | KW | cm | inches | kg | bs | |
| DNO-25G-P(AC) | 25 | 2.6 | 5 | 0.3 | 84-130 | 5.9-9.0 | 1.25 | 50x47x120 | 19.7x18.5x47.2 | 76 | 167.55 |
| DNO-30G-P(AC) | 30 | 5.3 | 6 | 0.4 | 84-130 | 5.9-9.0 | 1.4 | 50x47x125 | 19.7x18.5x49.2 | 84 | 185.19 |
| DNO-50G-P(AC) | 50 | 10.6 | 10 | 0.6 | 84-130 | 5.9-9.0 | 1.5 | 50x47x125 | 19.7x18.5x49.2 | 79.5 | 175.27 |
| DNO-75G-P(AC) | 75 | 15.9 | 15 | 0.9 | 84-130 | 5.9-9.0 | 2.2 | 60x50x140 | 23.6x19.7x55.1 | 112 | 246.92 |
| DNO-100G-P(AC) | 100 | 26.4 | 20 | 1.2 | 84-130 | 5.9-9.0 | 2.5 | 60x50x140 | 23.6x19.7x55.1 | 117.3 | 258.6 |
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
QY Pump is a horizontal self-sunction gas-liquid mixing pump, which is connected with special motor directly. All the flow parts of the pump is made of stainless steel by precise molding technology. The suction inlet of the pump can suck gas by negative pressure, so it is not needed to use gas compressor of gas jet. The quickly rotating impeller mix the gas and liquid, so mixer is not needed. Because of the mxing by added pressure in the volute, gas and liquid dissolveds with each other completely.The dissolution efficiency arrives to 80-100%, so big added pressure gas tank or expensive reactor mixing tower is not needed to get high concentration solution. One gas-liquid mixing pump can suck, mix, dissolve gas an liquid. And pump the high concentration solution to the application place directly.Therefore, the usage of the pump can improve the making efficiency of gas-liquid solution, simplify making device, save space, decrease first investment cost, save operration and maintenance cost.
