Dino Purification Co.,Ltd
Ozone Generator Specialist

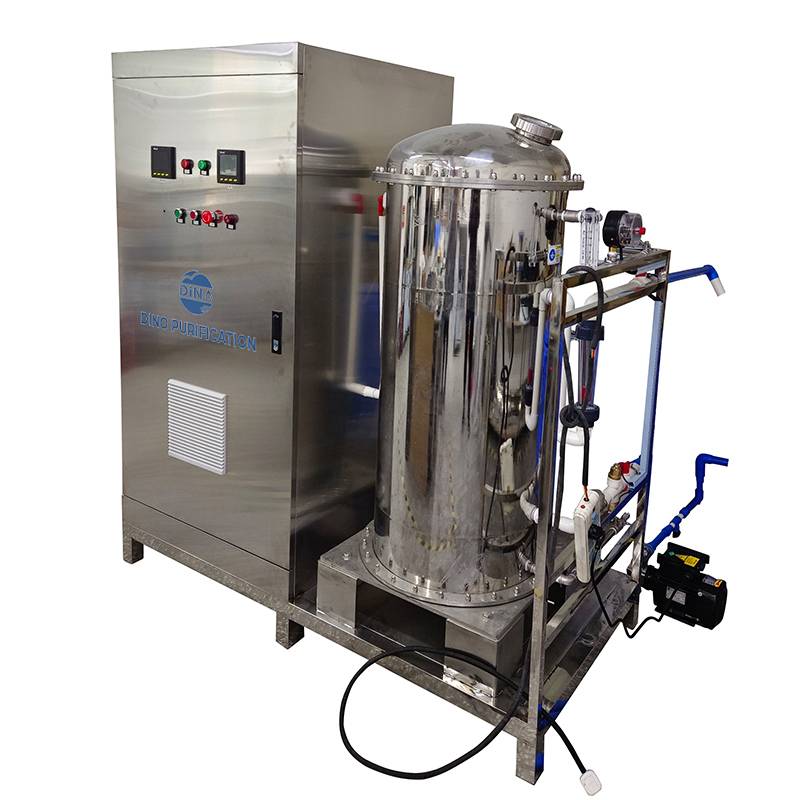

DNOThe series of products use corona discharge technology and quartz glass ozone cell to generate ozone gas,Extremely stable,Long lifespan,High discharge efficiency.They only need a power connection to use.The entire system includes ozone units Safety functions Control panel and industrial Oxygen concentrator for feed gas.
characteristic
1.Ozone concentration by weight6.6-9.3wt%,Adjustable ozone production
2.Anti backflow device,Plug and Play
3.Continuous operation,Low operating and maintenance costs
4.ImportPLC/HMI,standard4~20mASignal access port Optional
5.monitor Oxygen production unit;Ozone generator;Ozone factory production Percentage of maximum production capacity ;Cooling water status Hour running counter system failure – Ozone generator malfunction Optional
application
It is specifically designed for industrial use Designed for water disinfection and oxidation in laboratory and pilot plant applications,For example, drinking water Bottled water Process water circulation Recycling process Food and Beverage Industry cooling tower Aquaculture Aquarium Wastewater and swimming pools.Municipal water treatment Color and surfactant removal, etc,
specifications
| model | Maximum ozone production | Ozone concentration | oxygen consumption | voltage | maximum power | cooling | lengthxwidthxheight | weight | ||||||
| gram/hour | pound/day | Milligram/rise | % | rise/minute | cube/hour | SCFH | Kilowatt | centimeter | inch | kilogram | pound | |||
| DNO-200G | 200 | 10.6 | 94 | 6.6 | 40 | 2.4 | 85 | AC220V | 2.5 | water cold | 80x50x145 | 31.5×19.7×57.1 | 95 | 209 |
| 190 | 10 | 106 | 7.4 | 30 | 1.8 | 64 | ||||||||
| 145 | 7.7 | 121 | 8.5 | 20 | 1.2 | 43 | ||||||||
| DNO-300G | 300 | 15.9 | 95 | 6.6 | 60 | 3.6 | 128 | AC220V | 3.2 | water cold | 80 x 50 x 152 | 31.5×19.7×59.8 | 115 | 253 |
| 300 | 15.9 | 103 | 7.2 | 50 | 3 | 106 | ||||||||
| 274 | 14.5 | 114 | 8.0 | 40 | 2.4 | 85 | ||||||||
| DNO-500G | 500 | 26.4 | 98 | 6.9 | 90 | 5.4 | 191 | AC380V | 6.0 | water cold | 90x60x172 | 35.4×23.6×67.7 | 190 | 418 |
| 500 | 26.4 | 107 | 7.5 | 80 | 4.8 | 170 | ||||||||
| 420 | 22.2 | 117 | 8.2 | 60 | 3.6 | 128 | ||||||||
| DNO-1000G | 1000 | 52.9 | 113 | 7.9 | 160 | 9.6 | 340 | AC380V | 15.0 | water cold | 160x80x176 | 63×31.5×69.3 | 350 | 771 |
| 983 | 52 | 126 | 8.8 | 130 | 7.8 | 277 | ||||||||
| 878 | 46.4 | 133 | 9.3 | 110 | 6.6 | 234 | ||||||||
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
