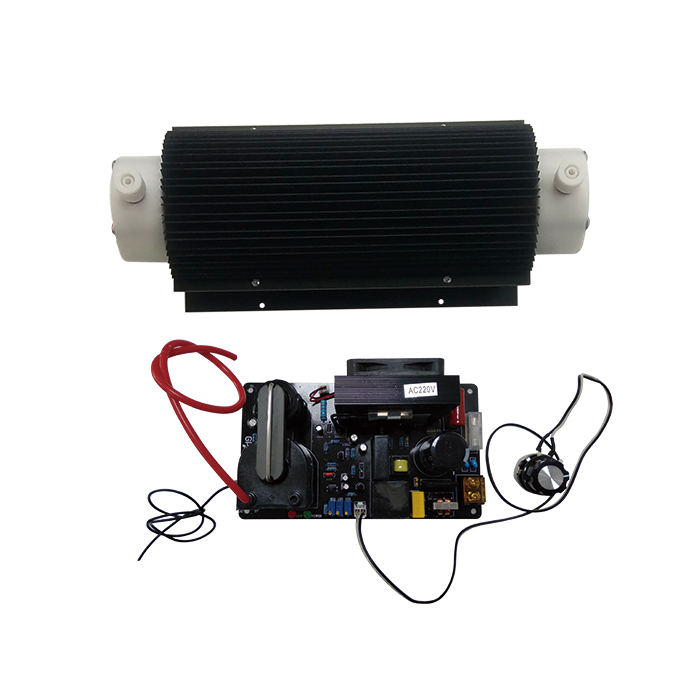

The characteristics of the power suppy:
IGBT drive circuit.
Orervoltage and orercurrent protection, open circuit protection.
Damage rate: within 5 years, <1/1000.
The characteristics of the quartz tube:
Quartz tube components: 99.9% silica, strong hardness, high temperature resistant, low expansion coefficient, high thermal shock resistance, chemical stability and good electrical insulation properties.
High efficiency: 1MM narrow discharge gap, high conversion rate, low noise.
Low power consumption: high voltage discharge, power consumption rate of 6 ‒ 10KW.h/kgO3.
Withstanding high voltage: tube voltage only 1/5 of the breakdown voltage, high dielectric constant.
Product applications:
School, home, hospital, office, hotels, shopping malls, public places, central air conditioning pipeline disinfection, pharmaceutical factory, packaging, food processing plants, supermarkets, hotels, entertainment venues, conference rooms, locker rooms, livestock and poultry breeding, edible fungus cultivation, indoor plants grow, indoor vegetable.
Specifications:
| Item | Unit | DNP-5G-A | DNP-7G-A | DNP-10G-A |
| Ozone production | G/Hr | 5 | 7 | 10 |
| Ozone density | mg/L | 45-85 | 45-85 | 52-95 |
| Input oxygen flow | LPM | 0.5-1.5 | 1-3 | 1-3 |
| Power | W | 0-40 | 0-60 | 0-80 |
| Voltage | V/Hz | AC 110/60, 220-240/50-60 | ||
| Ozone tube size | mm | 140*50*60mm | 230*50*60mm | 230*80*80mm |
| Power supply dimension | mm | 125*50*53mm | 162*73*68mm | 162*73*68mm |
| Diameter of gas inlet/outlet | mm | ED6 | ED6 | ED6 |
| Ozone tube weight | kg | 0.3 | 0.5 | 0.9 |
| Power supply weight | kg | 0.2 | 0.5 | 0.5 |
| Item | Unit | DNP-15G-A | DNP-20G-A |
| Ozone production | G/Hr | 15 | 20 |
| Ozone density | mg/L | 60-120 | 60-120 |
| Input oxygen flow | LPM | 1-4 | 1-5 |
| Power | W | 0-120 | 0-160 |
| Voltage | V/Hz | AC 110/60, 220-240/50-60 | |
| Ozone tube size | mm | 240*110*110mm | 290*110*110mm |
| Power supply dimension | mm | 175*100*62mm | 175*100*62mm |
| Diameter of gas inlet/outlet | mm | ED6 | ED6 |
| Ozone tube weight | kg | 1.4 | 1.7 |
| Power supply weight | kg | 0.6 | 0.6 |
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
