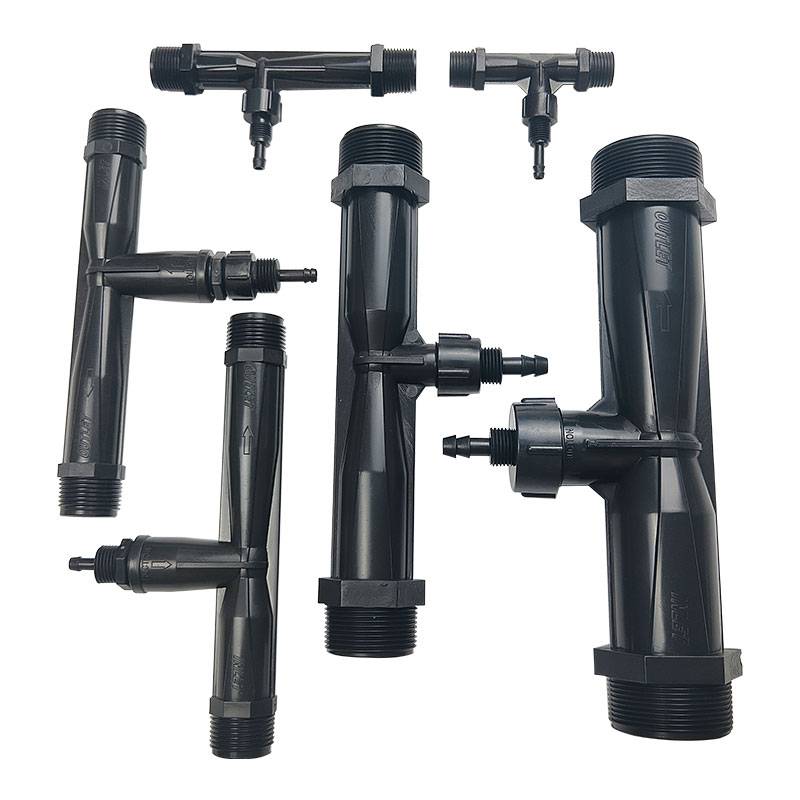

OZONE VENTURI INJECTOR

Dino Purification’s venturi injectors are differential pressure injectors with internal mixing vanes. Superiority of Dino injectors is due to the unique, patented design which maximizes injector efficiency, suction capacity and mixing capabilities. The operating costs of Dino injectors are lower than less efficient systems, and Dino injectors are trouble-free because they have no moving parts.

DETAIL
  • How a Venturi Injector Works

    When pressurized water enters the injector inlet, it is constricted toward the injection chamber and changes into a high-velocity jet stream. The increase in velocity through the injection chamber results in a decrease in absolute pressure, creating a vacuum, thereby enabling an additive material to be drawn through the suction port and entrained into the water stream. As the jet stream is diffused toward the injector outlet, its velocity is reduced and it is reconverted into lower pressure energy.

    Performance

    Dino Purification venturi injectors operate over a wide range of pressures and require only a minimal pressure differential between the inlet and outlet sides to initiate a vacuum at the suction port. The injectors’ internal mixing vanes create thousands of micro bubbles which greatly increases the surface area of gas (oxygen, ozone, etc.) in contact with the liquid (several micro bubbles have a greater surface area than one large bubble of the same volume).


    Product technic data

    ModelFlow rateFluid connectionGas port connectionMaterialMax pressureMax TemperatureLength (mm)
    A120570.83-3.33 LPM1/4 1/8  BarbPVDF200 PSI (14.06 Bar)200°F (93.33°C)57
    A251003.33-16.6 LPM1/2 1/4  Barb100
    A2515216.6-50 LPM3/4 1/4  Bard152
    A3223550-166 LPM1 1/2  Barb230
    A48275166-416 LPM1.5 1/2  Barb275
    A58295416-833 LPM2 1/2.5  Barb295
