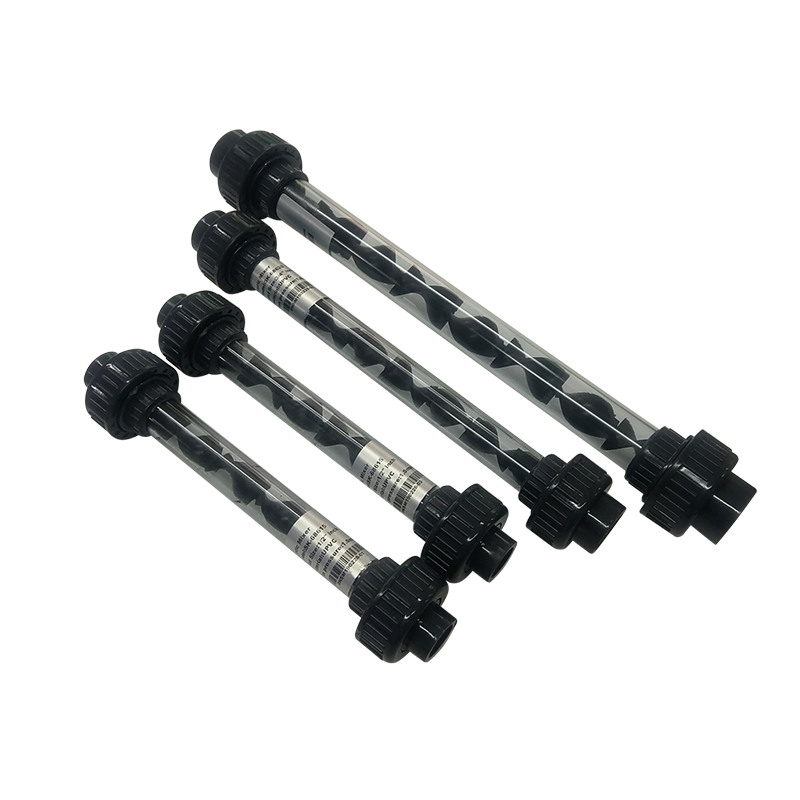

Pipe mixer is also called static mixer. It is the ideal equipment for water treatment and instant mixing of various chemicals. The mixer has the characteristics of fast and efficient mixing, simple structure, energy saving and compact size. In the absence of external force, the water flows through 6-8 mixing units, cross-dividing with each other, and the swirling direction rotates and continuously crosses the flow, which can achieve a good mixing effect in an instant, and the mixing efficiency is as high as 90-95%.
Design Reference
1. The dosing position should be at the front of the pipe mixer and greater than 25cm.
2. Pipes for dosing can be designed according to the water supply standard. The flow rate inside the pipe should be higher than 0.9m/s, maximum working pressure:1.6Mpa.
3. The pipe mixer is designed according to the specific caliber and water volume. Once the water volume is reduced, the head loss drastically reduced, which significantly affects the mixing effect.
Application
1. Urban domestic water and industrial water treatment inject and mixing various coagulants and coagulants
2. Gas-liquid mixing device, such as ozone, oxygen, liquid chlorine
3. Industrial wastewater undergoes acid-base neutralization and mixing
4. Mixed homogenization of industrial wastewater
5. Accessories for the dosing pump or diaphragm pump dosing system
Specification

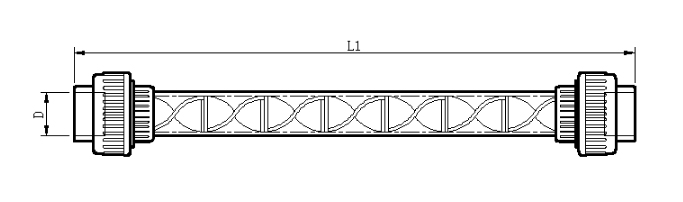

| Model | Size | D mm | L1 (mm) | Water flow m3/h |
| SK-68615 | 1/2 | 20 | 252 | 0.4-1 |
| SK-68620 | 3/4 | 25 | 330 | 0.6-1.2 |
| SK-68625 | 1 | 32 | 420 | 1-3.2 |
| SK-68632 | 1.25 | 40 | 495 | 1.4-6 |
| SK-68640 | 1.5 | 50 | 565 | 2.2-8 |
| SK-68650 | 2 | 63 | 695 | 3.5-18 |
| SK-68665 | 2.5 | 75 | 900 | 10-40 |
| SK68680 | 3″ | 90 | 880 | 15-60 |
| SK686100 | 4 | 110 | 990 | 30-110 |
|
