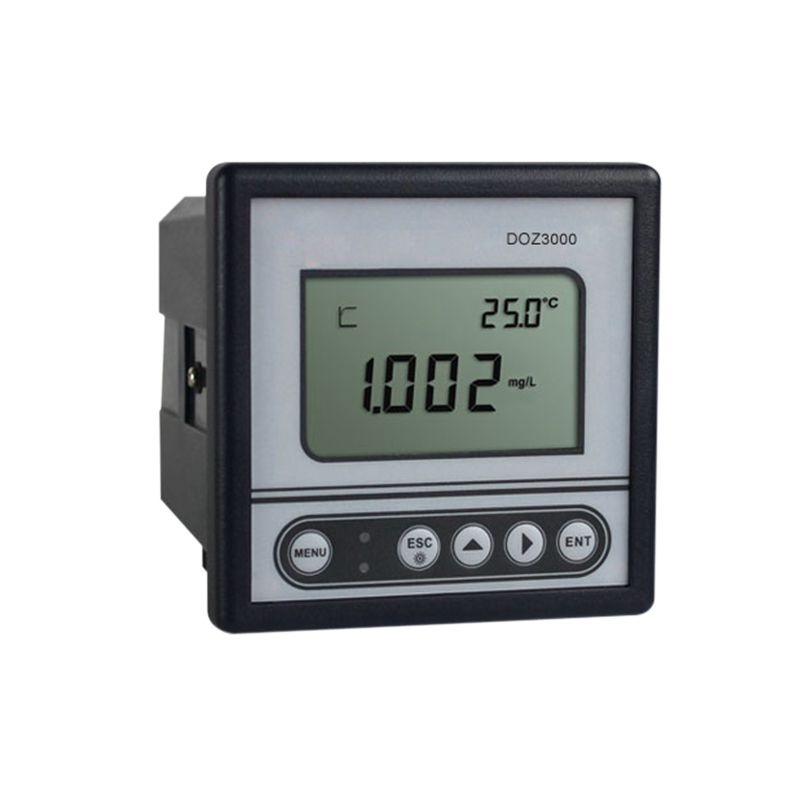

DOZ-3000/6000 is a total new industrial dissolved ozone analyzer, with high intelligence, sensitivity. It can measure dissolved ozone and temperature simultaneously. It is widely used in such industries as thermal power plant, running water, pharmaceutical, drinking water, water purification, industrial pure water, swimming pool disinfection residual chlorine continuous monitoring.
Features
Simple operation, fast calibration
IP65 rated, dustproof and waterproof, all-weather precise
4-20mA isolated current output, efficient variable speed
Dual password protection, prevent unauthorized change settings
Great anti-interference ability, suitable for complex industrial field environment
Three electorde method without membrane dissolved ozone, accurate measurement, can be compared with DPD method
Specifications
Model | DOZ3000 | DOZ6000 | |
Dissolved Ozone | Measuring range | 0.000 -2.000 mg/L or 0.00-20.00 mg/L | |
Resolution | 0.001 mg/L or 0.01mg/L | ||
Measuring Accuracy | 1%±1 LSD | ||
Temperature | Measuring range | –10.0~110.0 °C | |
Resolution | 0.1°C | ||
Measuring Accuracy | ±0.3°C | ||
Temperature input | 22KΩ / PT1000 | ||
Temperature compensation | automatic | ||
Signal output | Output range | 4~20 mA (adjustable) | |
Current accuracy | 1%F.S. | ||
Output loading | <500 Ω | ||
Data interface | RS485 | RS485 Modbus protocol | |
On off control | Control method | 2 SPST relay | |
Other parameters | Load capacity | 2.5A 230 VAC | |
Cleaning/alarm relay | optinal | ||
Working power supply | 85~260VAC or 12~36VDC | ||
Working temperature | 0~60°C | ||
Working humidity | < 90% | ||
Levels of protection | IP65 | ||
Method of installation | Panel mounting | Wall-mounting | |
Outline dimension | 108×108×156 mm | 158×188×108 mm | |
Hole diameter | 94.5×94.5 mm | / | |
Weight | 0.6kg | 0.7kg |
