Dino Purification Co.,Ltd
Ozone Generator Specialist

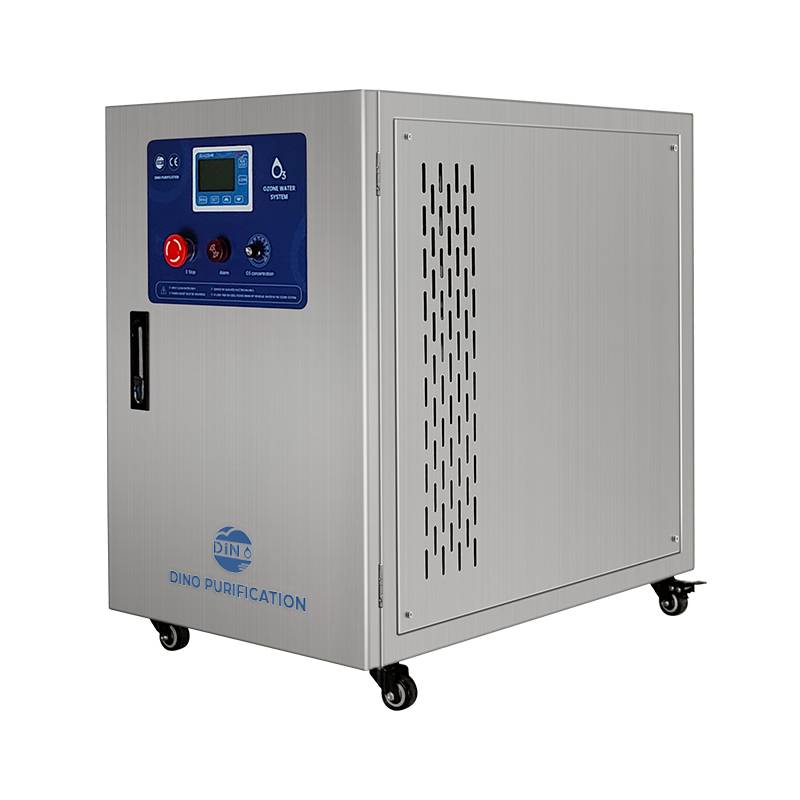

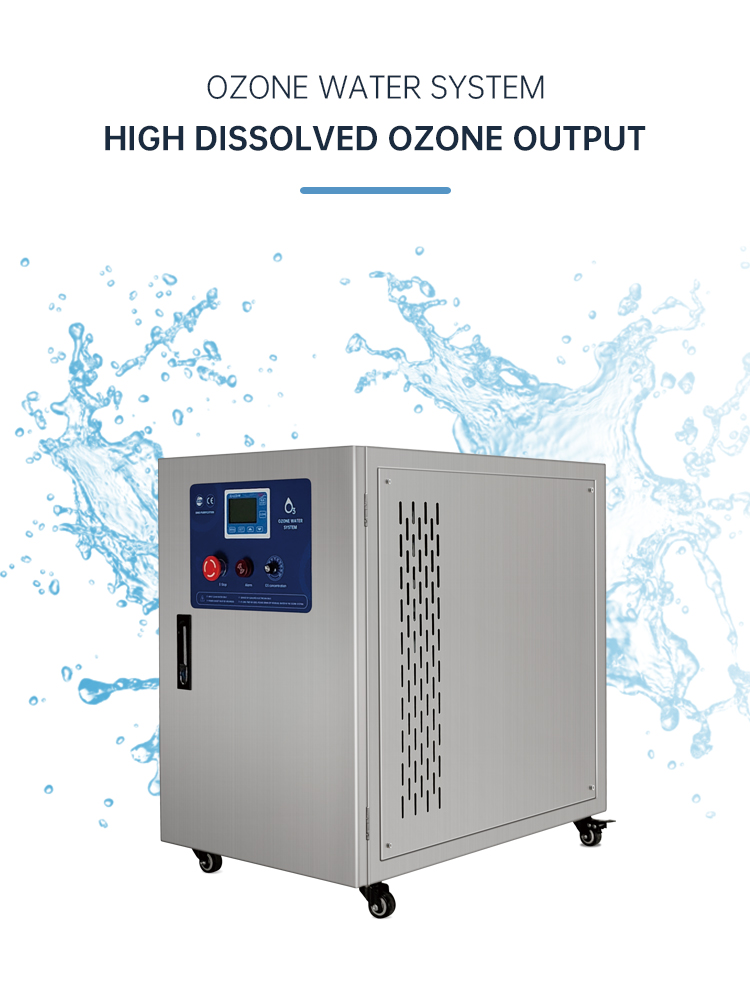

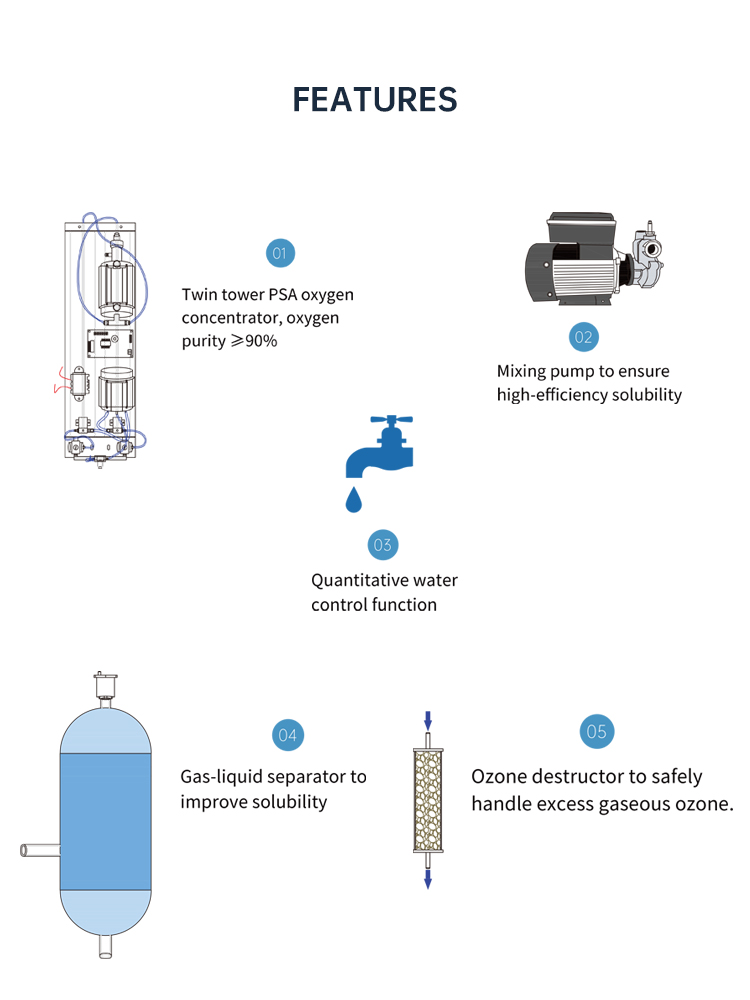

The Ozone Water System (OWS) is an integrated ozone generator, oxygen concentrator, mixing pump and gas-liquid separator all in one system, It is convenient and installation friendly system to give you minimum installation work.
| MODEL | DN-OWS-5G PLUS | DN-OWS-10G PLUS | DN-OWS-20G PLUS | |
MAX OZONE PRODUCTION | g/hour | 5 | 10 | 20 |
OXYGEN CONSUMPTIO | l/min | 1 | 3 | 5 |
| m3/h | 0.06 | 0.18 | 0.3 | |
| SCFH | 2.1 | 6.4 | 10.5 | |
| WATER FLOW | LPM | 1-10 | 1-30 | 15-50 |

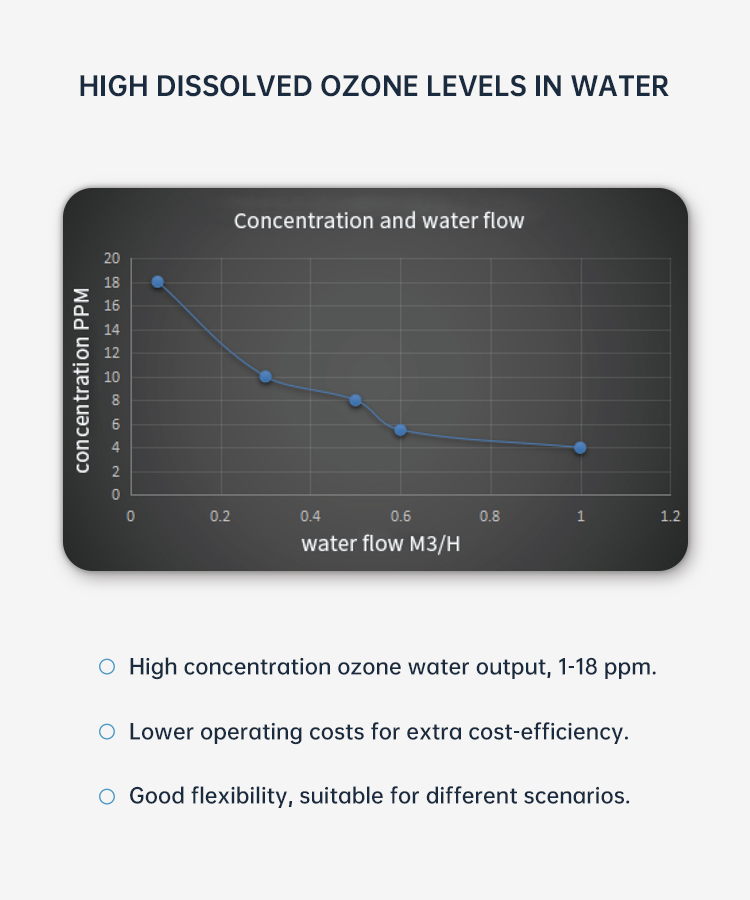

| DISSOLVED OZONE | ppm | 1.0ppm @ 10LPM 2.0ppm @ 1LPM | 1.0ppm @ 30LPM 3.5ppm @ 1LPM | 2.0ppm @ 50LPM 5.5ppm @ 15LPM |
MAX POWER | W | 300 | 850 | 1080 |
| LENGTH x WIDTH x HEIGHT | cm | 37x25x35 | 45x70x70.5 | 45x70x70.5 |
| inches | 14.6x9.8x13.8 | 17.7x27.6x27.8 | 17.7x27.6x27.8 | |
| WEIGHT | kg | 12.6 | 59.5 | 63.5 |
| lb | 27.7 | 130.9 | 139.7 | |
| *Dissolved ozone concentration was measured using a reagent colorimetric method. | ||||
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
