Dino Purification Co.,Ltd
Ozone Generator Specialist

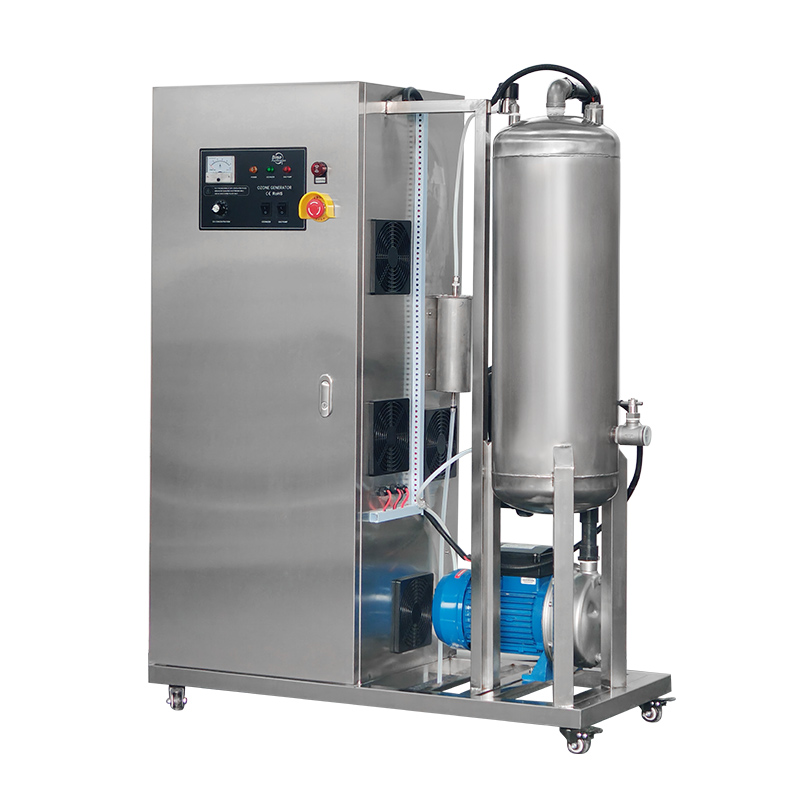

Ozonated Water System (OWS) is an integrated ozone generator, oxygen concentrator, mixing pump all in one system, it is convenient and installation friendly system to give you minimum installation work, it can easy turn normal water to ozonated water or oxygen water.
Features
Built in air compressor
Built-in oxygen generator
High efficiency gas-liquid mixing pump
Back flow prevention
Easy and simple control, compact design
Very efficient with excellent mass transfer of ozone
Ready to use upon delivery
APPLICATIONS
The system instantly turns normal water into ozonated water for your application:
Greenhouse Seafood processing
Residential well water
Agriculture Commercial aquariums
Waste water
Hydroponics Large residential pools
Bottled and drinking water, Small community drinking water
Cooling towers Fruit and vegetable washing
Commercial pools
Specifications
| Model | DN-OWS-10G | DN-OWS-20G | DN-OWS-30G | |
| Ozonated water output | Flow rate | 400-2800L/Hr | 1000-3500L/Hr | 1000-3500L L/Hr |
| Concentration | 1-3 ppm | 1-4 ppm | 1-5 ppm | |
| Output pressure | 2-3kg/cm^2 | |||
| Operating requirements | Voltage | 220-240V/50-60Hz | ||
| Power | 0.9 kw | 1 kw | 1.2 kw | |
| Temperature | 5-40℃ | |||
| Inlet diameter | 3/4〃 | 1〃 | 1〃 | |
| Outlet diameter | 1/2〃 | 3/4〃 | 3/4〃 | |
| Dimension | cm | 50*40*110 | 50*40*128 | 50*40*138 |
| Purify water | M3/Hr | 10 | 20 | 30 |
| Net Weight | kg | 52 | 57.5 | 68.4 |
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
