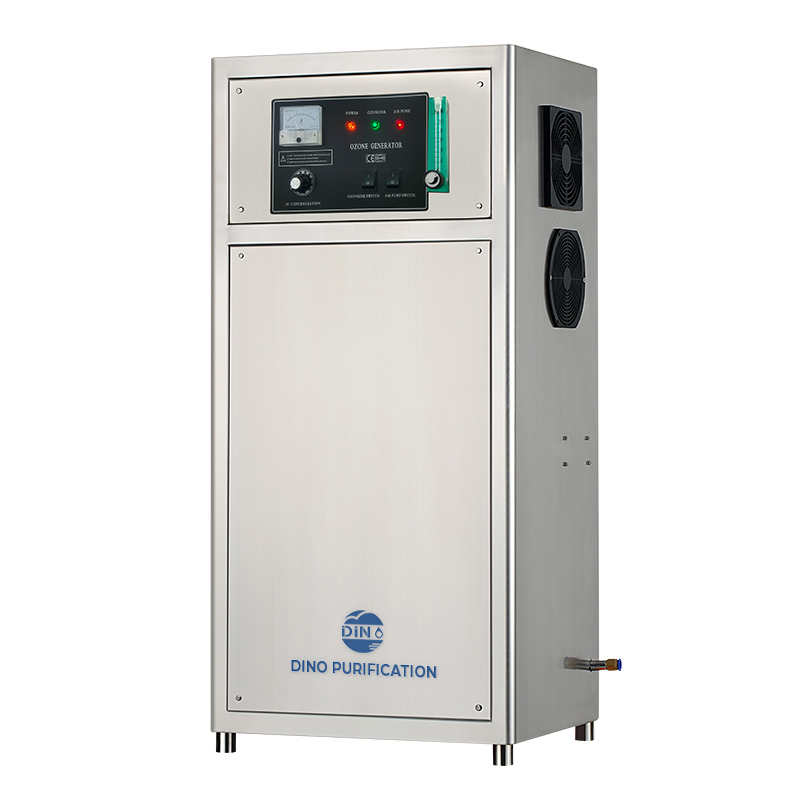

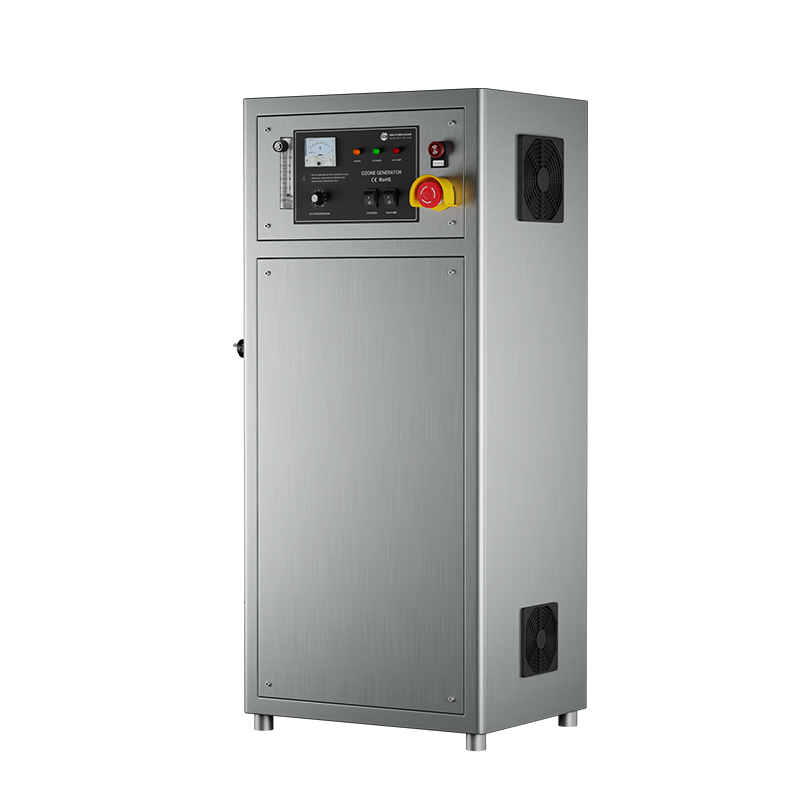

DNO-Series ozone generators are our most advanced systems. They are ready to use with just power connection needed. it is an intergrated system of ozone unit, safety features, control panel and industrial oxygen concentrator for feed gas.
DNOThe series of products use corona discharge technology and quartz glass ozone cell to generate ozone gas,Extremely stable,Long lifespan,High discharge efficiency.Built in Oxygen concentrator and air compressor,It is a turnkey solution,Can generate ozone or oxygen from ambient air sources.
characteristic
1.Ozone concentration by weight4.1-9.5wt%,Adjustable ozone production
2.Anti backflow device,Plug and Play
3.Continuous operation,Low operating and maintenance costs
4.ImportPLC/HMI,standard4~20mASignal access port Optional
application
Water and wastewater treatment,Agricultural irrigation,Aquaculture,swimming pool,Olive oil, etc,
specifications
| model | Maximum ozoneyield | Ozone concentration | Oxygen consumptionamount | maximumpower | cooling | long X wide x high | weight | ||||||
| gram/hour | pound/day | Milligram/rise | % | rise/minute | cube/hour | SCFH | W | centimeter | inch | kilogram | pound | ||
| DNO-10G | 10 | 0.5 | 58 | 4.1 | 3 | 0.2 | 6 | 600 | Air-cooled | 50x40x73 | 19.5×15.6×28.5 | 33.2 | 73.2 |
| 7 | 0.4 | 59 | 4.1 | 2 | 0.1 | 4 | |||||||
| 4 | 0.2 | 65 | 4.5 | 1 | 0.1 | 2 | |||||||
| DNO-15G | 15 | 0.8 | 79 | 5.5 | 3 | 0.2 | 6 | 670 | Air-cooled | 50x40x73 | 19.5×15.6×28.5 | 38.0 | 83.8 |
| 10 | 0.5 | 81 | 5.7 | 2 | 0.1 | 4 | |||||||
| 5 | 0.3 | 82 | 5.7 | 1 | 0.1 | 2 | |||||||
| DNO-20G | 20 | 1.1 | 70 | 4.9 | 5 | 0.3 | 11 | 850 | Air-cooled | 50x40x91 | 19.5×15.6×35.5 | 40.0 | 88.2 |
| 15 | 0.8 | 82 | 5.7 | 3 | 0.2 | 6 | |||||||
| 6 | 0.3 | 93 | 6.5 | 1 | 0.1 | 2 | |||||||
| DNO-30G | 30 | 1.6 | 86 | 6.0 | 6 | 0.4 | 13 | 900 | water-cooling | 50x40x91 | 19.5×15.6×35.5 | 49.0 | 108 |
| 25 | 1.3 | 105 | 7.3 | 4 | 0.2 | 9 | |||||||
| 8 | 0.4 | 140 | 9.8 | 1 | 0.1 | 2 | |||||||
| DNO-50G | 50 | 2.6 | 86 | 6.0 | 10 | 0.6 | 21 | 940 | water-cooling | 50x40x115 | 19.5×15.6×44.9 | 59.6 | 131.4 |
| 49 | 2.6 | 103 | 7.2 | 8 | 0.5 | 17 | |||||||
| 37 | 2 | 123 | 8.6 | 5 | 0.3 | 11 | |||||||
| DNO-100G | 100 | 5.3 | 85 | 5.9 | 20 | 1.2 | 43 | 2750 | water-cooling | 60x50x138 | 23.4×19.5×54.3 | 114.0 | 251.3 |
| 90 | 4.8 | 100 | 7.0 | 15 | 0.9 | 32 | |||||||
| 58 | 3.1 | 122 | 8.5 | 8 | 0.5 | 17 | |||||||
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
