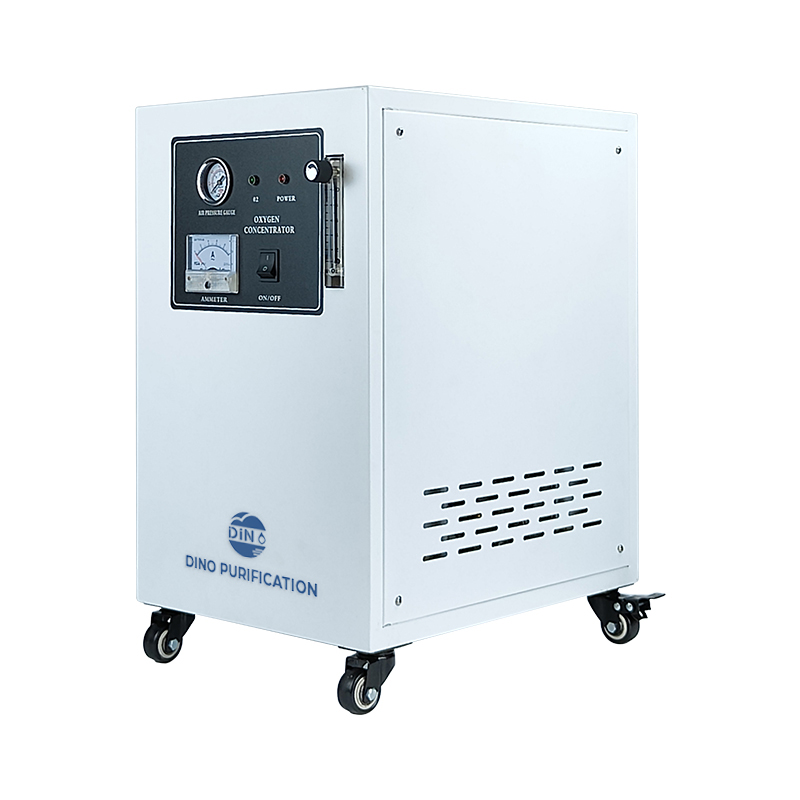

DNYSeries Oxygen concentrator adopts imported zeolite molecular sieve adsorbent,Utilizing pressure swing adsorption PSA The principle separates oxygen from nitrogen in the air,Filter harmful substances from the air,To obtain high concentration oxygen that meets medical oxygen standards.PSAOxygen production equipment provides you with a purity of93%±3Oxygen,Meet all requirements.
feature
*Purity up to96%
*Integrated air compressor
*Plug and Play Installation
*24/7working
*Small footprint
application
Fish farming industry,Glass industry,Paper and pulp industry,Chemical industry, etc,
specifications
model | Maximum oxygen output | purity | maximum power | Outlet pressure | long X wide x high | weight | ||||||
rise/minute | cube/hour | SCFH | % | W | Mpa | bar | pound/Square inches | centimeter | inch | kilogram | pound | |
DNY-3L | 3 | 0.2 | 6 | 93±3 | 450 | 0.08 | 0.8 | 12 | 43x32x56 | 16.9×12.6×22 | 27 | 59.5 |
DNY-5L | 5 | 0.3 | 11 | 93±3 | 600 | 0.08 | 0.8 | 12 | 43x32x56 | 16.9×12.6×22 | 28 | 61.7 |
DNY-8L | 8 | 0.5 | 17 | 93±3 | 620 | 0.08 | 0.8 | 12 | 43x32x56 | 16.9×12.6×22 | 29 | 63.9 |
DNY-10L | 10 | 0.6 | 21 | 93±3 | 630 | 0.08 | 0.8 | 12 | 43x32x56 | 16.9×12.6×22 | 30 | 66.1 |
