Dino Purification Co.,Ltd
Ozone Generator Specialist

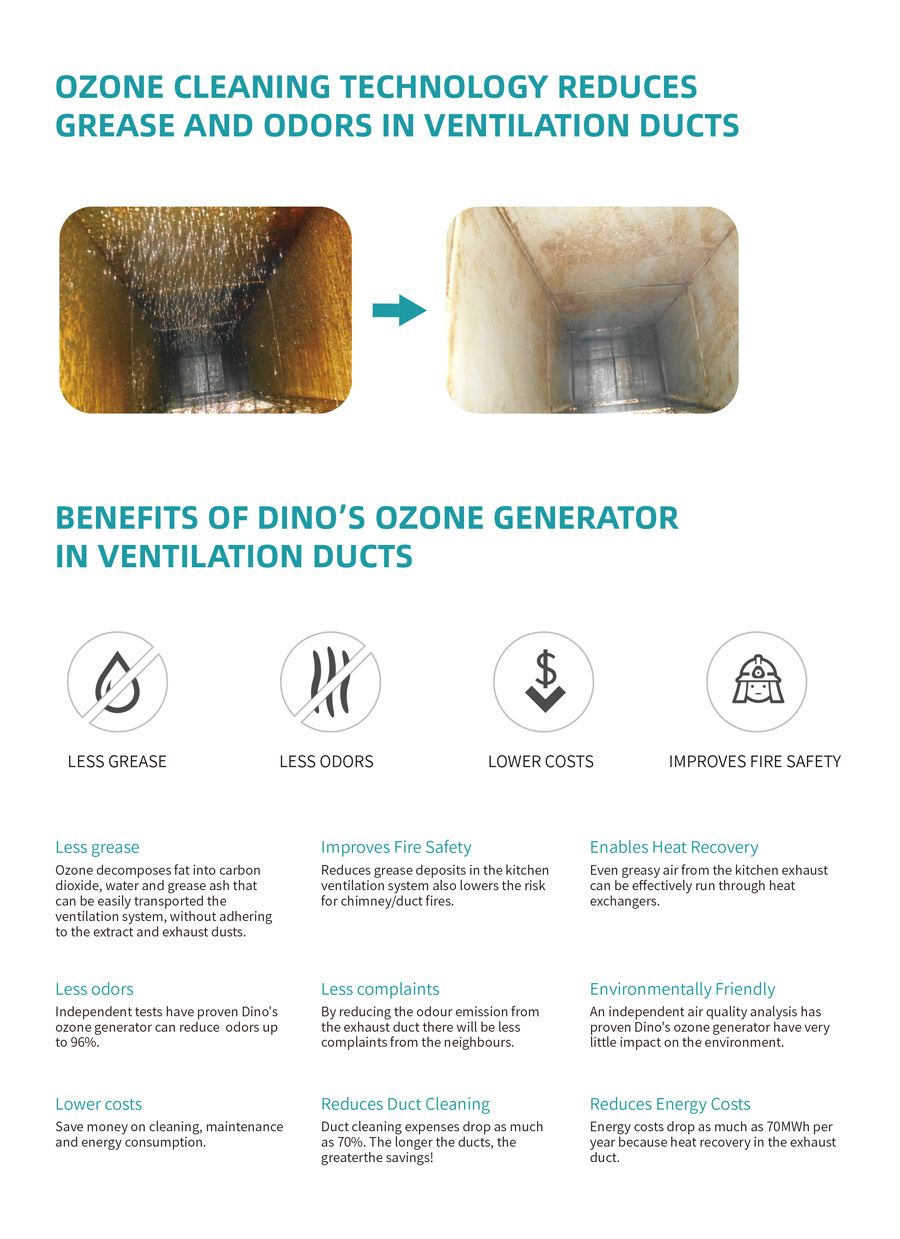

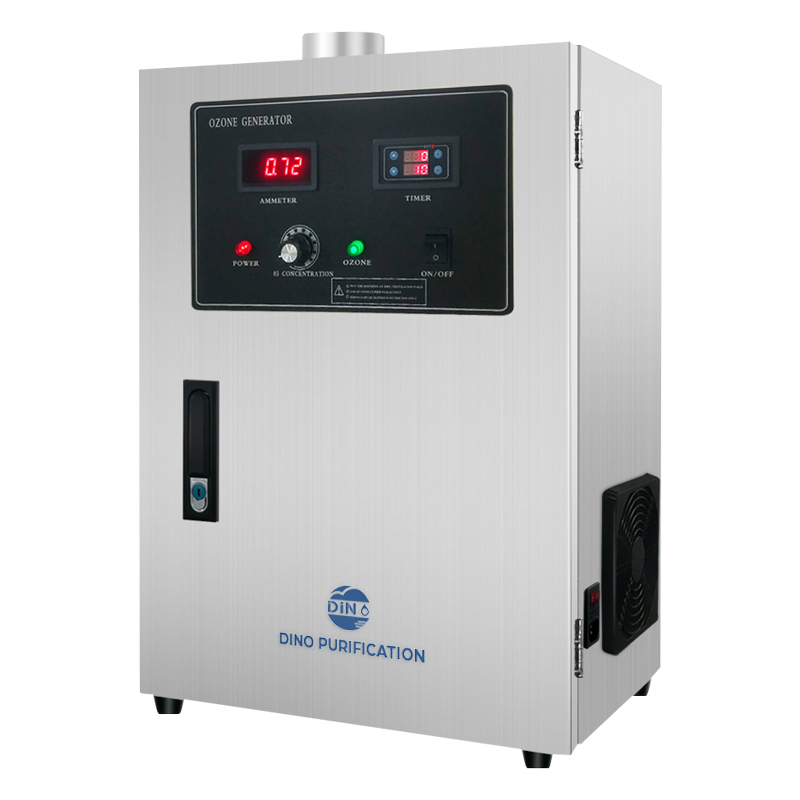

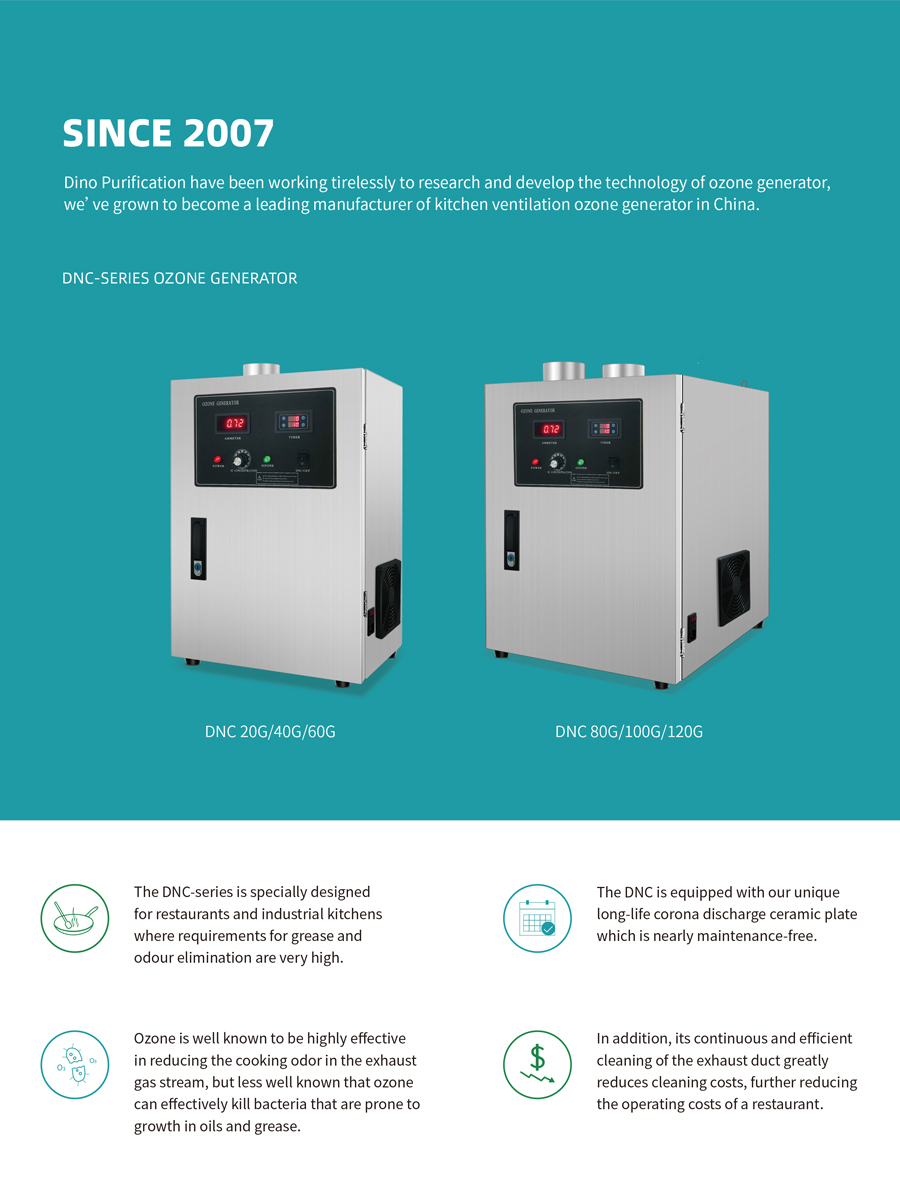

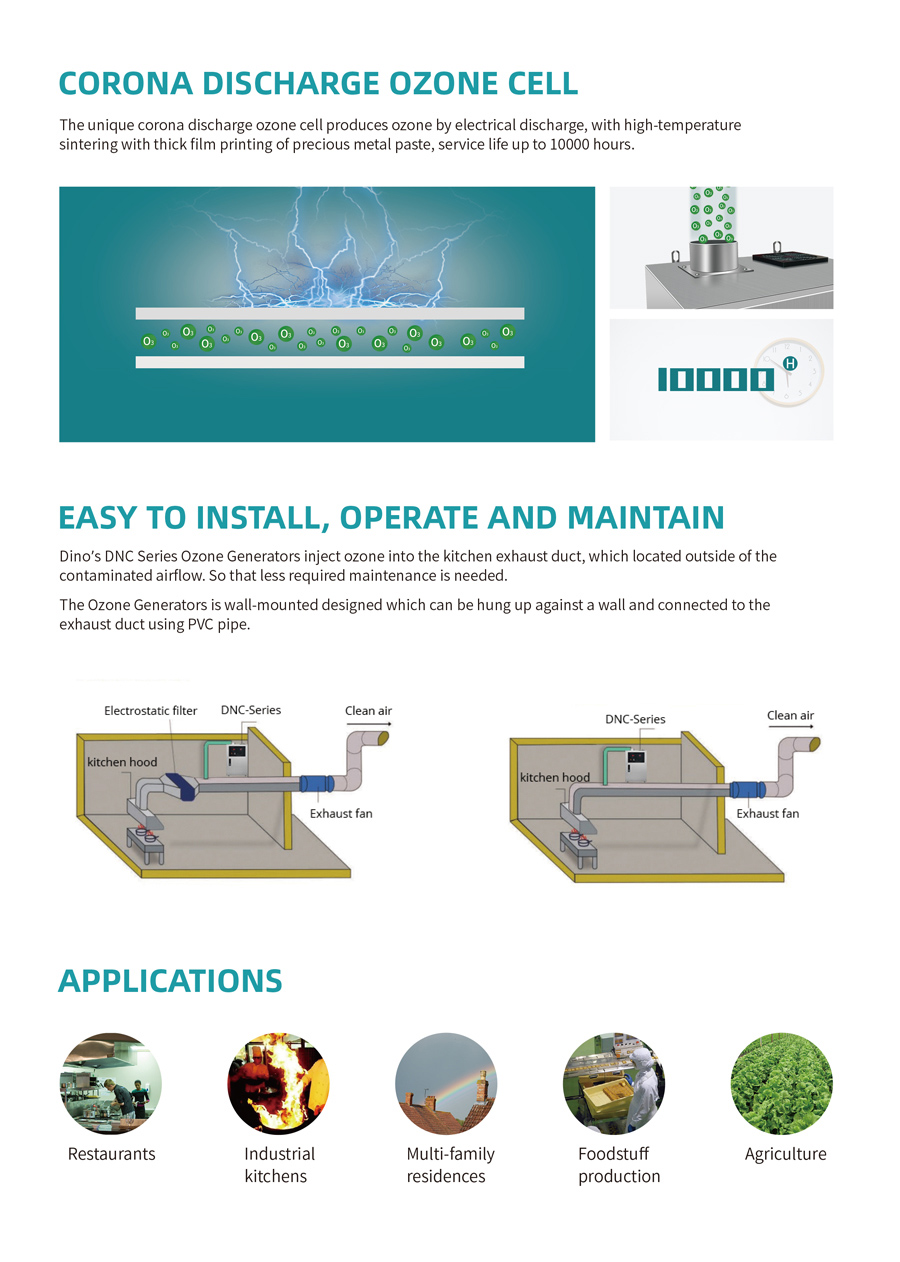

The DNC series of Ozone Generators is designed to deliver an effective Odour Control and oil Reduction solution for Commercial and Industrial Kitchen Extract Canopies and Ductwork Systems.
SPECIFICATIONS：
| Item | Unit | DNC-20G | DNC-40G | DNC-60G | DNC-80G | DNC-100G | DNC-120G |
| Ozone output | G/Hr | 20 | 40 | 60 | 80 | 100 | 120 |
| Power | W | 280 | 300 | 350 | 600 | 700 | 740 |
| Voltage | V/Hz | AC 220-240/50-60;110/60 | |||||
| Dimension | cm | 40*32*62 | 50*45*62 | ||||
| Unit weight | Kg | 18 | 18.3 | 18.6 | 29 | 29.2 | 29.4 |
| Treated air flow | CMH | 7000 | 10000 | 15000 | 20000 | 25000 | 30000 |
| Ozone outlet | mm | 90*Single outlet | 90* Double outlets | ||||
| Working temperature | ℃ | 20-40 | |||||
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
