Dino Purification Co.,Ltd
Ozone Generator Specialist

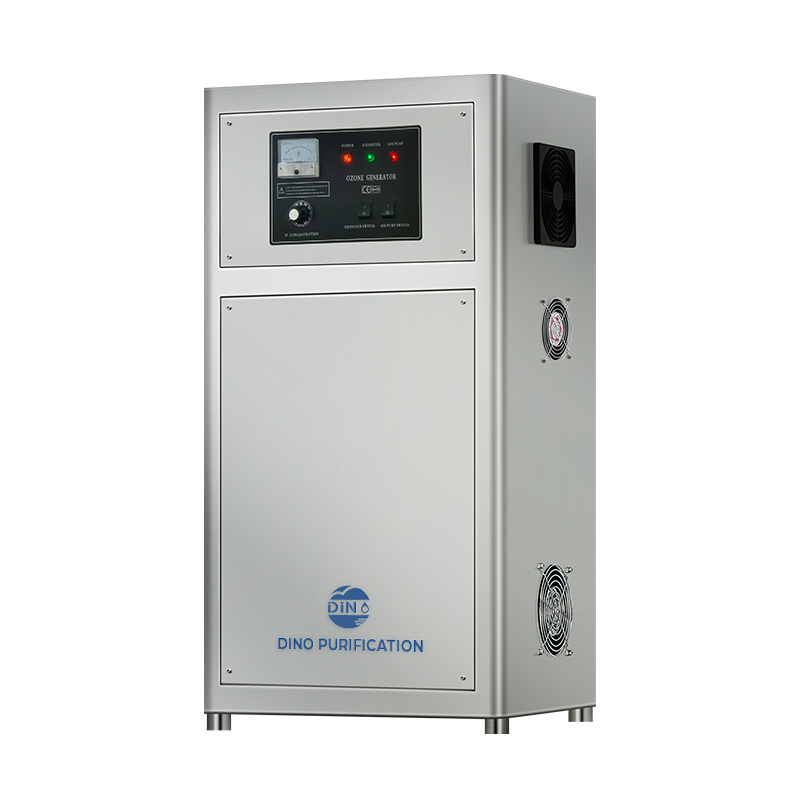

DNA Series Water Cooling Ozone Generator DNA Series Industrial ozone
generator produce ozone from built-in clean dry air or external oxygen
tank Features:Corona discharge technology with quartz glass tubeUnique
air-cooled and water cooled.
features
Corona discharge technology with quartz glass tube
Unique air-cooled and water cooled, long service life
High conversion efficiency, low energy consumption
Adjustable electrical potentiometer 0-100%
High grade stainless steel 304 housing, atmospheric and beautiful, durable
Air-compressor integrated, high pressure ozone output, plug and play
application
Food refrigeration, seed disinfection, workshop sterilization, waste gas treatment; livestock, poultry plants; food processing and storage; treatment & odor control, Pharmaceutical, HAVC.
Water Treatment: water purifying and sterilizing; Disinfection of vegetable and fruit; drinking water treatment, bottled water; swimming pools and spa; waste water treatment, aquaculture and Zoos, Laundry.
Specifications
| Item | Unit | DNA-30G | DNA-50G | DNA-80G | DNA-100G | DNA-150G | DNA-200G |
| Ozone output | G/Hr | 30 | 50 | 80 | 100 | 150 | 200 |
| Power | W | 520 | 700 | 1000 | 1100 | 1800 | 1900 |
| Voltage | V/Hz | 110/60,220-240/50-60 | |||||
| Concentration | Mg/L | 15-25 | |||||
| Gas feeding | / | Clean dry air | |||||
| Dimension | cm | 40*30*72 | 50*40*91 | 50*45*123 | 60*50*138 | ||
| Unit weight | Kg | 14.6 | 31.2 | 36.9 | 45 | 63.8 | 65.5 |
| Requiredcoolingwater flow | M3/Hr | 1-1.2 | 1.2-1.9 | 1.9-2.2 | |||
| Cooling Methood | / | water cooled | |||||
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
The High-Efficiency Air-Cooled Ozone Generator is an ideal solution for applications without cooling water availability.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
