Dino Purification Co.,Ltd
Ozone Generator Specialist

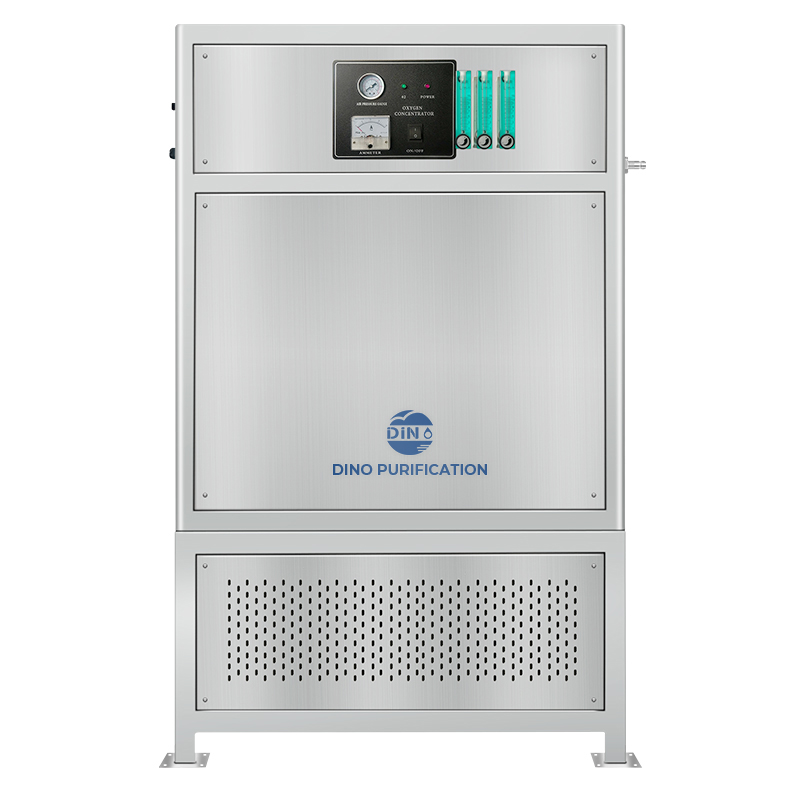

DNYSeries Oxygen concentrator adopts imported zeolite molecular sieve adsorbent,Utilizing pressure swing adsorption PSA The principle separates oxygen from nitrogen in the air,Filter harmful substances from the air,To obtain high concentration oxygen that meets medical oxygen standards.PSAOxygen production equipment provides you with a purity of93%±3Oxygen,Meet all requirements.
feature
*Integrated air compressor
*Purity up to96%
*24/7working
*Plug and Play Installation
*Pressure up to 30 psi*
application
Paper and pulp industry,chemical industry,Water and wastewaterhandle,Metal gas waving andcutting,Fish farming, etc,
specifications
| model | Maximum oxygen output | purity | Maximum power outlet pressure | long X wide x high | weight | |||||||
| rise/minute | cube/hour | SCFH | % | Kilowatt | Mpa | bar | pound/Square inches | centimeter | inch | kilogram | pound | |
| DNY-20L | 20 | 1.2 | 43 | 93±3 | 1.4 | 0.1 | 1 | 15 | 60x50×125 | 23.6×19.7×49.2 | 54 | 119.1 |
| DNY-40L | 40 | 2.4 | 85 | 93±3 | 2.8 | 0.1 | 1 | 15 | 100×50×138 | 39.4×19.7×54.3 | 106 | 233.7 |
| DNY-60L | 60 | 3.6 | 127 | 93±3 | 4.2 | 0.1 | 1 | 15 | 80×70×138 | 31.5×27.6×54.3 | 150 | 330.7 |
| DNY-80L | 80 | 4.8 | 170 | 93±3 | 5.6 | 0.1 | 1 | 15 | 100×70×138 | 39.4×27.6×54.3 | 216 | 476.2 |
| DNY-100L | 100 | 6 | 212 | 93±3 | 7.0 | 0.1 | 1 | 15 | 120×80×138 | 47.2×31.5×54.3 | 270 | 595.2 |
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
