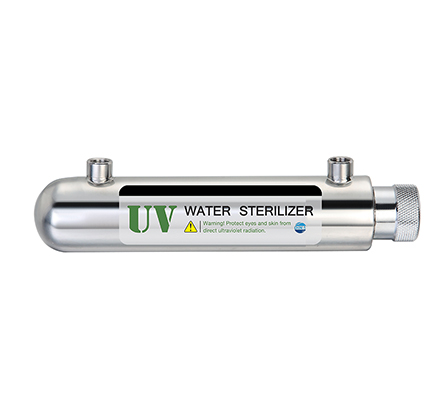

UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
ELECTRICAL
Voltage: 110V or 220V 50/60Hz
Alarm Audible and visual
Indicator: Lamp operation and failure
Total running days: Available on request
Features：
EFFECTIVE
99.99% destruction of bacteria (such as Ecoli), viruses and protozoan cysts.
SAFE
No chemicals added to water and no danger of overdosing
EASY
Simple installation. Audible and visual alarm if lamp fails.
ECONOMICAL
Low maintenance cost and easy servicing.
Chamber material: 304 SS (316L SS available on request), 4 pins or 2+2 pins Philips uv lamp as options.
REQUIREMENT
Maximum operating pressure: 8bar (116psi)
Ambient water temperature: 2-40 0C (36-1040F)
Iron < 0.3ppm (0.3mg/L)
Hardness < 7gpg (120mg/L)
Turbidity < 1NTU
UV transmittance > 75%
Application：
Short-wave radiation with a peak at 253.7nm (UVC) for disinfection purposes, UVC germicidal light deactivate bacteria, viruses and fungal spores up to 99.99% sterilization rate.
UV technology is primarily used in areas where there is a risk of microbiological contamination.
Dino Purification’s UV systems widely used for water disinfection of:
Industry water system, Housing drinking water, Food processing, Pharmaceutical industrial, Home water purifier, Drink equipment disinfection, Waste treatment and other fields, Residential Mains Water, Swimming Pool, Spa, Hotel, Hospital, School, Laboratory, Commercial Water Vending, Municipal Water Treatment, Fish Pond
Specification：
| Model | Lamp Power | Reactor dimension | Package size (cm) | Water flow | In & outlet port |
| DN-SSE-004 | 4W | 195*50.8mm | 47 × 39 × 58.5/15sets | 0.3GPM or 0.07m3/Hr | 1/4 female |
| DN-SSE-006 | 6W | 255*50.8mm | 47 × 39 × 58.5/15sets | 0.5GPM or 0.1m3/Hr | 1/4 female |
| DN-SSE-012 | 12W | 310*50.8mm | 52.5 × 39 × 58.5/15sets | 1GPM or 0.2m3/Hr | 1/4 female |
| DN-SSE-016 | 16W | 370*63.5mm | 57 × 40 × 58.5/15sets | 2GPM or 0.4m3/Hr | 1/2 male |
| DN-SSE-025 | 25W*1 | 590*63.5mm | 79.5 × 28 × 47.5/8sets | 6GPM or 1.4m3/Hr | 1/2 male |
| DN-SSE-030 | 30W*1 | 910*63.5mm | 119 × 28 × 47.5/8sets | 8GPM or 1.8m3/Hr | 3/4″ male |
| DN-SSE-040 | 40W*1 | 885*63.5mm | 112.5 × 28 × 47.5/8sets | 10GPM or 2.3m3/Hr | 3/4″ male |
| DN-SSE-055 | 55W*1 | 950*63.5mm | 119 × 28 × 47.5/8sets | 2GPM or 2.7m3/Hr | 3/4″ male |
|
1g/hr quartz tube ozone generator with 12 volt car lighter socket is suitable for disinfection of interior of a car, remove all pollutants and odors.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
|
UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.
