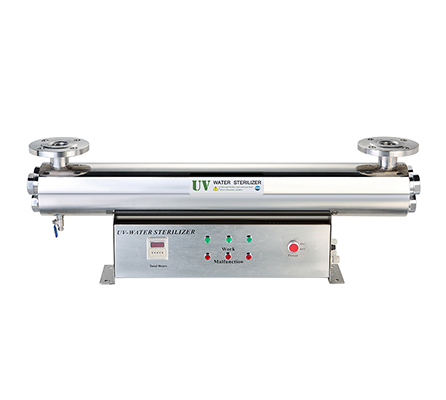

Electronic UVC Light Waste Water Disinfection Industrial UV Sterilizer

UV sterilizers use the 304SS# stainless steel inside and outside, the main body internal and external are polished to enhance the UV irradiance. Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long lifetime, stable and reliable operation, bactericidal efficiency is more than 99.99%.

DETAIL
  • ELECTRICAL

    Voltage: 110V or 220V 50/60Hz

    Alarm Audible and visual

    Indicator: Lamp operation and failure

    Total running days: Available on request


    Features:

    EFFECTIVE

    99.99% destruction of bacteria (such as Ecoli), viruses and protozoan cysts.

    SAFE

    No chemicals added to water and no danger of overdosing.

    EASY

    Simple installation. Audible and visual alarm if lamp fails.

    ECONOMICAL

    Low maintenance cost and easy servicing.

    Chamber material: 304 SS (316L SS available on request), 4 pins or 2+2 pins Philips uv lamp as options.


    REQUIREMENT

    Maximum operating pressure: 8bar (116psi)

    Ambient water temperature: 2-40 0C (36-1040F)

    Iron < 0.3ppm (0.3mg/L)

    Hardness < 7gpg (120mg/L)

    Turbidity < 1NTU

    UV transmittance > 75%


    Application:

    Short-wave radiation with a peak at 253.7nm (UVC) for disinfection purposes, UVC germicidal light deactivate bacteria, viruses and fungal spores up to 99.99% sterilization rate.

    UV technology is primarily used in areas where there is a risk of microbiological contamination.

    Dino Purification’s UV systems widely used for water disinfection of:

    Industry water system, Housing drinking water, Food processing, Pharmaceutical industrial, Home water purifier, Drink equipment disinfection, Waste treatment and other fields, Residential Mains Water, Swimming Pool, Spa, Hotel, Hospital, School, Laboratory, Commercial Water Vending, Municipal Water Treatment, Fish Pond.


    Specification

    ModelLamp PowerReactor dimensionPackage sizeWater flowIn & outlet port
    DN-SDB-11055W*263.5*950mm102.5 × 22.4 × 42cm/1set24GPM or 5.4m3/Hr1″ male
    DN-SDB-16555W*3133*950mm102.5 × 24.8 × 45cm/1set36GPM or 8.1m3/Hr1.5″ male
    DN-SDB-22055W*4133*950mm102.5 × 24.8 × 45cm/1set48GPM or 10.9 m3/Hr1.5″male
    DN-SDB-33055W*6950 × 168mm107.0 × 35.0 × 60cm/1set72GPM or 16.3 m3/Hr2  male
    DN-SDB-44055W*8950 × 219mm107.0 × 40.0 × 70cm/1set96GPM or 21.8 m3/Hr3  male
    DN-SDB-55055W*10950 × 275mm109.0 × 48.0 × 80cm/1set120GPM or 27.2 m3/Hr4  male
    DN-SDB-66055W*12950 × 275mm109.0 × 48.0 × 80cm/1set144GPM or 32.7 m3/Hr4  male
